Low Voltage Power Cables

0.6/1 (1.2) kV,
NYSY
(Cu/PVC/CTS/PVC)

(Copper Conductor, PVC Insulated, Copper Tape Screen, PVC Sheathed)

Standard Specification : SNI IEC 60502-1, IEC 60502-1

*For Insulation colour can be based on Customer Request or Follow Standard.

Application

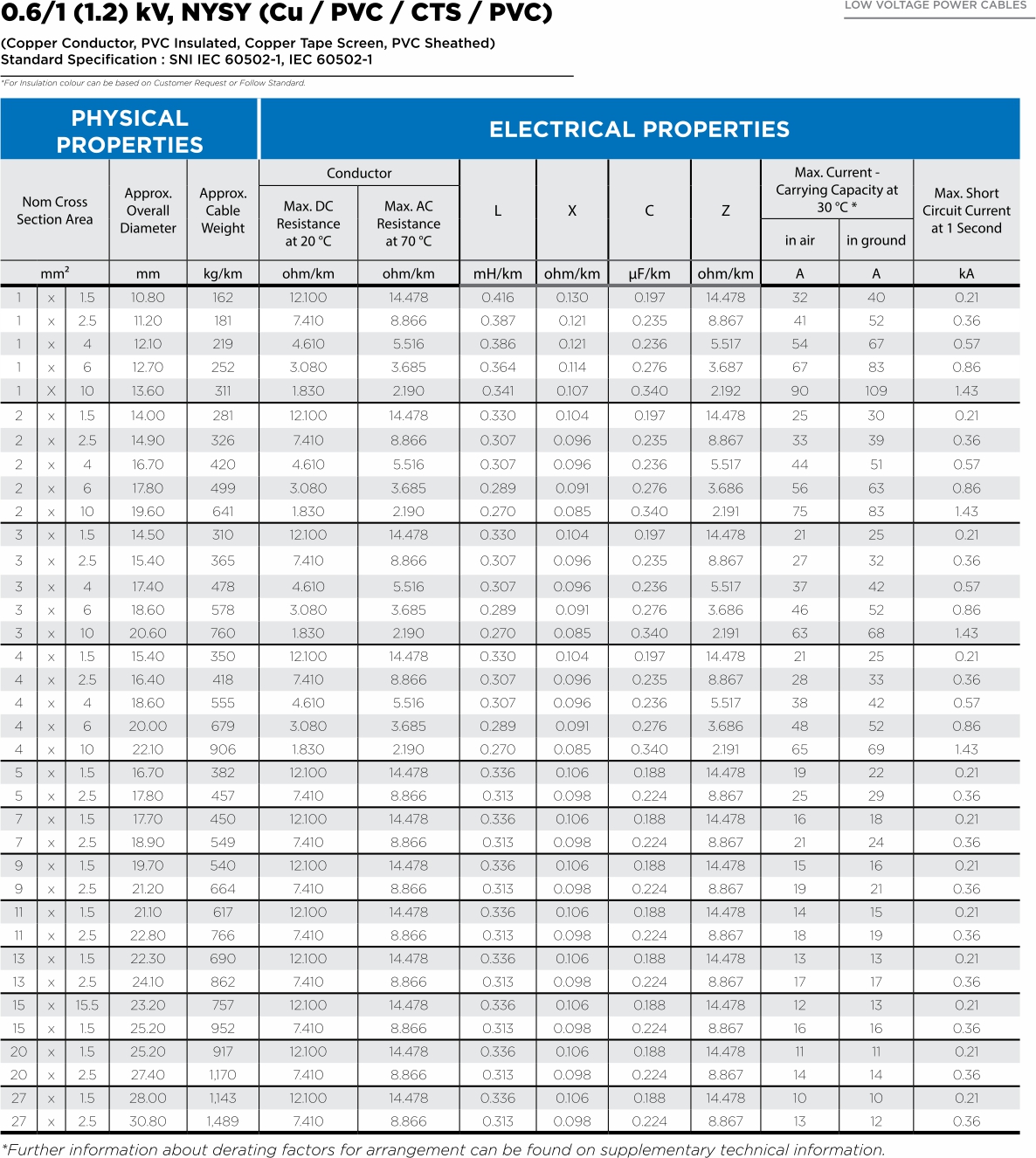

Specifications

Application :
For power plants and switchgear as well as for installation of sub-station; for installation indoors in confinned spaces and cable channels because of small bending radius. As burried cable, because of its light weight prefered in where installation is difficult.

Special Features on Request :

Oil Resistance • UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non Category
Heat Resistance
Anti Termite
Anti Rodent
Low Smoke Zero Halogen

Note = Conductor Shape :

1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape.
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 – 630 sqmm supplied in non compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Standard Packing :
