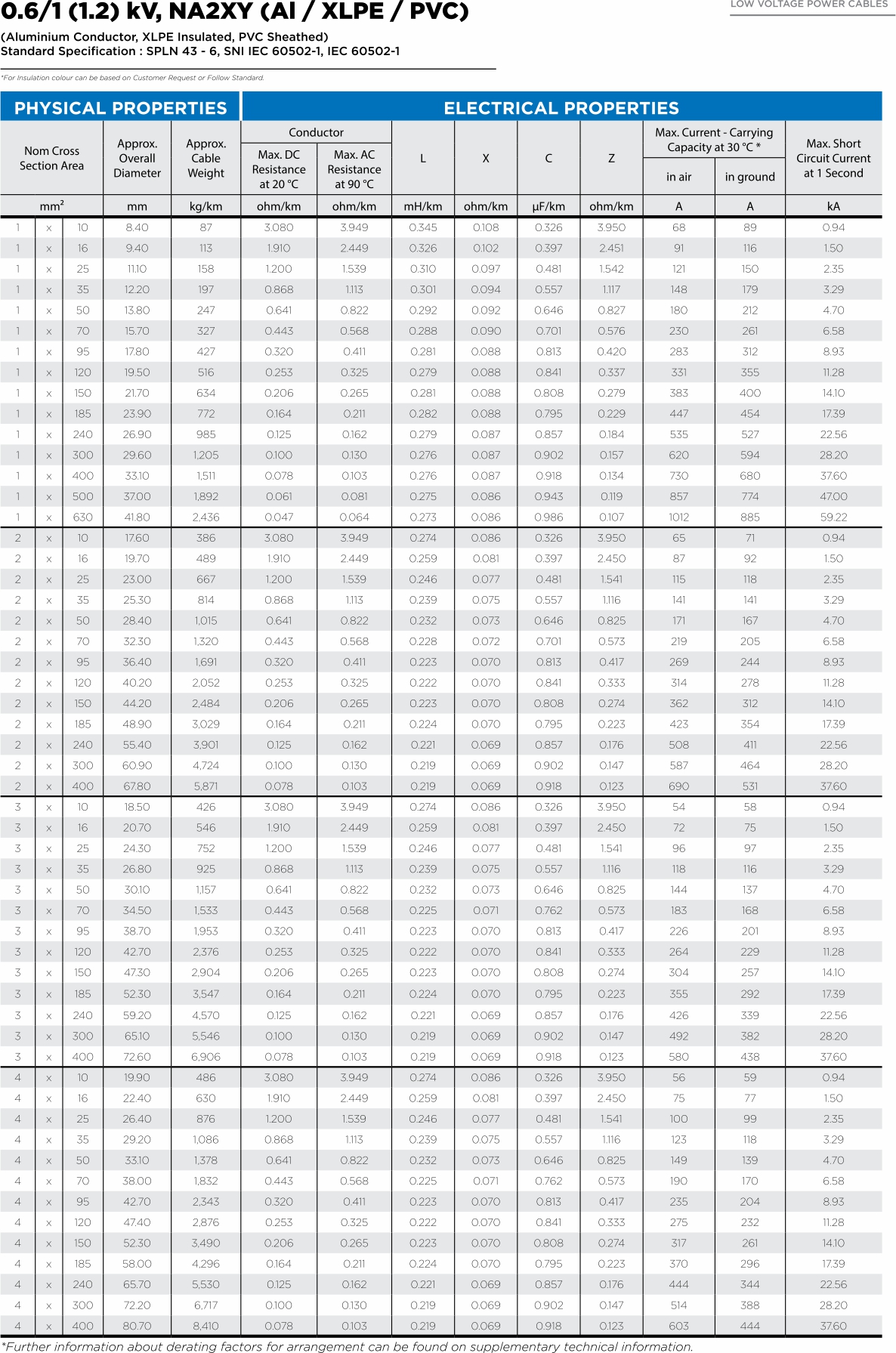

Low Voltage Power Cables

0.6/1 (1.2) kV,
NA2XY
(Al/XLPE/PVC)

(Aluminium Conductor, XLPE Insulated, PVC Sheathed)

Standard Specification : SPLN 43 – 6, SNI IEC 60502-1, IEC 60502-1

*For Insulation colour can be based on Customer Request or Follow Standard.

Application :

Power cable : Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.

Special Features on Request :

  • Oil Resistance
  • UV Resistance
  • Flame Retardant Cat. A, B, C
  • Flame Retardant Non Category
  • Heat Resistance
  • Anti Termite
  • Anti Rodent
  • Low Smoke Zero Halogen

Note = Conductor Shape :

  • 10 – 16 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
  • 25 – 630 sqmm supplied in non compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Standard Packing :

  • 10 – 630 sqmm supplied in wooden drum @ 1000 meters
  • Length Tolerance per drum ± 2%
