Low Voltage Power Cables

0.6/1 (1.2) kV
NAYFGbY
(Al / PVC / SFA / PVC)

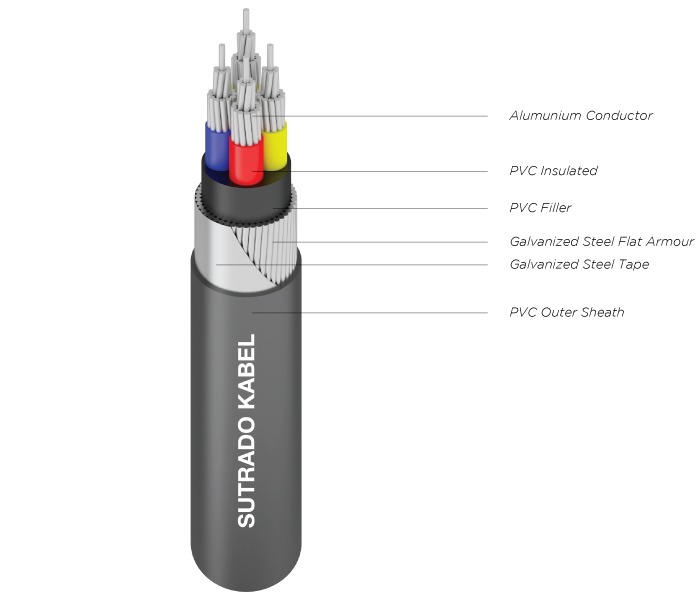

(Alumunium Conductor, PVC Insulated, Galvanized Steel Flat Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-1, IEC 60502-1

Application
Specifications

Application
For installation in ground, indoors, cable
trunking and outdoors if increased mechanical
protection is required or where high-pulling
stress may occur during installation or operation.

Special Features on Request

Oil Resistance
UV Resistance
Flame Retardant Cat. A, B, C
Flame Retardant Non Category
Heat Resistance
Anti Termite
Anti Rodent
Low Smoke Zero Halogen

Note : Conductor Shape

10 sqmm supplied in non compacted
circular stranded (rm) conductor shape
25 – 400 sqmm supplied in non compacted
circular stranded (rm) or compacted
circular stranded (cm) conductor shape
Other size and shape can be discussed

Standard Packing
