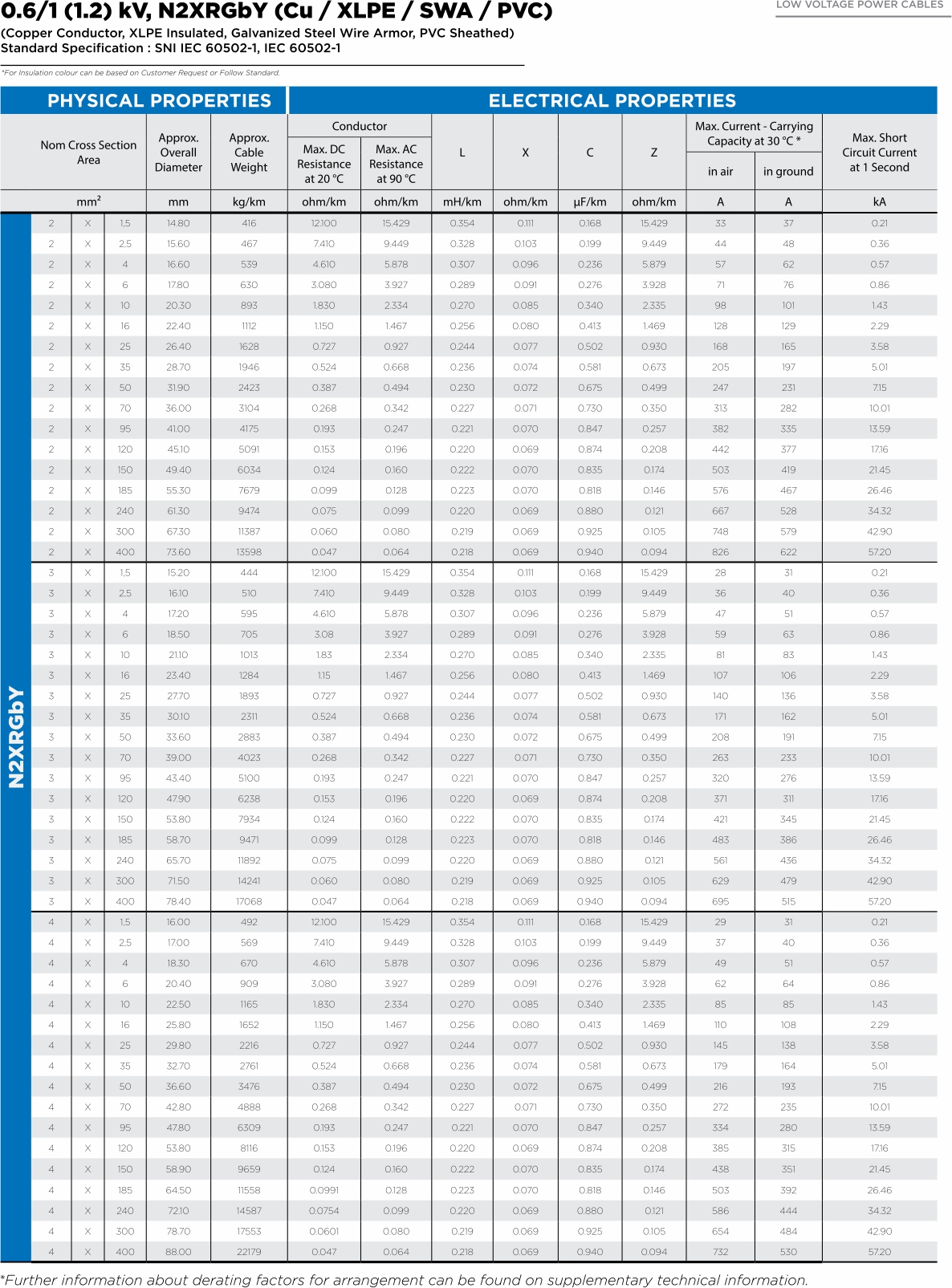

Low Voltage Power Cables

0.6/1 (1.2) kV,
N2XRGbY
(Cu/XLPE/SWA/PVC)

(Copper Conductor, XLPE Insulated, Galvanized Steel Wire Armor, PVC Sheathed)

Standard Specification : SNI IEC 60502-1, IEC 60502-1

*For Insulation colour can be based on Customer Request or Follow Standard.

Application :
For installation in ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stress may occur during installation or operation.

Special Features on Request :

  • Oil Resistance
  • UV Resistance
  • Flame Retardant Cat. A, B, C
  • Flame Retardant Non Category
  • Heat Resistance
  • Anti Termite
  • Anti Rodent
  • Low Smoke Zero Halogen

Note = Conductor Shape :

  • 1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
  • 16 sqmm supplied in non compacted circular stranded (rm) conductor shape
  • 25 – 630 sqmm supplied in non compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Standard Packing :

  • 1.5 – 10 sqmm supplied in coil @ 100 m
  • 16 – 300 sqmm supplied in wooden drum @ 1000 m
  • 400 – 630 sqmm supplied in wooden drum on available length
  • Length Tolerance per drum ± 2%

Download Full Catalog
