High Voltage Cables

87/150 (170) kV,
Cu/XLPE/CWS/CAA/HDPE

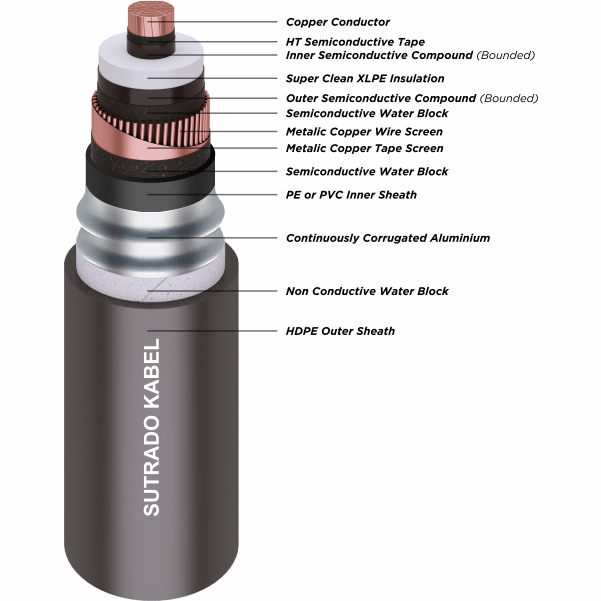

(Copper Conductor, XLPE Insulation, Copper Wire Screen, Water Sealing, Continuous Welded Corrugated Aluminium Armour and HDPE Sheathed)
Standard Spesification : IEC 60840

*Other Specification are available on request

Application

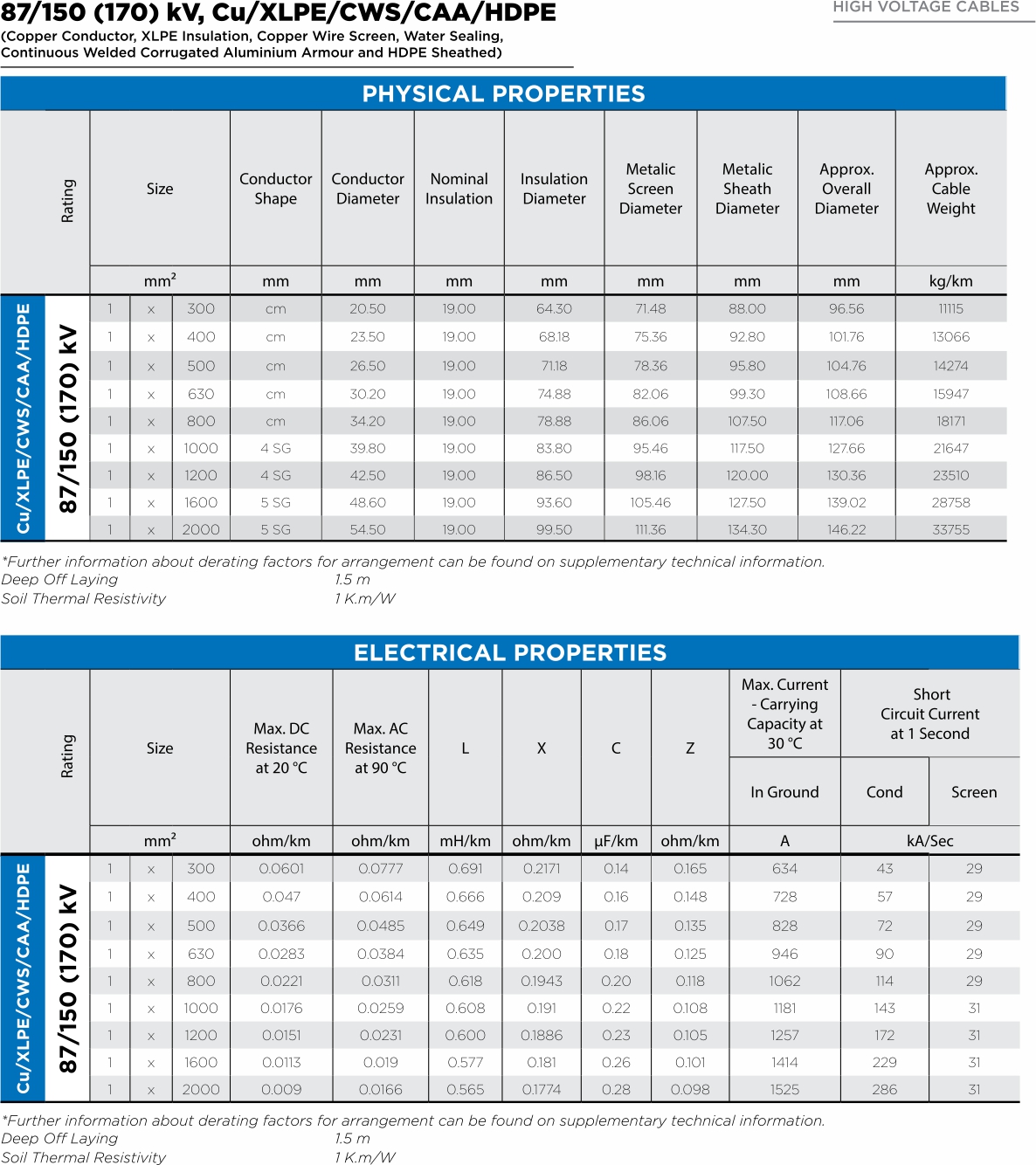

Specifications

Application

Single core High Voltage Cable, Copper or Alumunium Conductor with rated Voltage of 170 kV, Apllies for underground transmission with power frequency of 50-60 Hz.
Standard Specification
IEC 60840

Installation

Max Duration Short Circuit at 5 second, Operating temperature of cable conductor shall not exceed 250° C.
Minimum bending radius of cable shall not be smaller than 15 times of actual overall diametre cable.

Standard Packing
